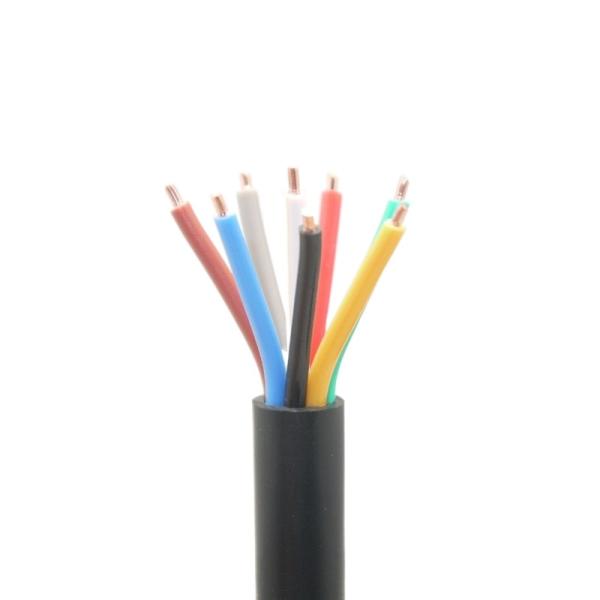

600/1000 V Copper Conductor PVC Insulated PVC Sheathed Control Cable

Application:

1. KVV PVC Insulated cables are control cables, which are what we often call PVC insulated control cables. Generally used for wiring on control, signal and measurement systems.
2. Its rated voltage is 450/750V or 0.6/1kV.
3. If the conductor works for a long time, the maximum operating temperature cannot exceed 70 degrees, and the laying environment temperature cannot be lower than zero degrees. If you want to work in a sub-zero environment, you must preheat it first.
4. Allowable bending radius: ①The allowable bending radius of unarmored cables is 6 times or more of the outer diameter. ②The allowable bending radius of armored or copper tape shielded cables is 12 times the outer diameter. ③The allowable bending radius of the shielded flexible cable is also 6 times or more of the outer diameter.
5. Laying range: suitable for fixed occasions, such as indoors, cable trenches and pipelines.

Specificaiton:

How to choose a cable?

1. The choice of model
(1) Models can be selected from the aspects of usage, installation conditions and safety.
(2) According to the application, power cables, control cables, insulated cables, etc. can be selected.
(3) From the perspective of laying conditions, general plastic insulation, armored cables, anticorrosive cables, etc. can be selected.
(4) From the perspective of safety, flame-retardant cables, fire-resistant cables, halogen-free flame-retardant cables, etc. can be selected.

2. Selection of specifications
(1) What specifications should be used to consider whether the cable is prone to heat, the voltage loss during operation, and the mechanical strength of the wire itself, etc.
(2) If it is a low-voltage power line, choose from the heat generation section, because it carries a large current, and then consider the voltage loss and mechanical strength.
(3) For high-voltage lines, the current density is the first to look at, followed by heat generation and voltage loss.

PVC Insulated Cable

Nuoxing Cable Co., Ltd is a modern cable enterprise we focusing on the R&D, production and sales since 2010.

We are located in Hebei province which covers more than 30,000 m2. With a total staff 210, and 30 production lines.
The production range covers low voltage power cables, medium voltage power cables, control cables, overhead cables, rubber cables, and bare conductors etc.
Our company has obtained China national industrial production license, ISO9001/ISO14001 certificate, CCC certificate, CE certificate. There are standard producing system and strictly QC systems.
As a global supplier, our products can be produced according to different standards. such as GB, IEC, BS, ASTM, DIN, NFC and so on.
So far our cables have been exported to more than 30 countries in worldwide.

And believe more market will be open through our effort. We sincerely expect to cooperate with you.
